Introduction

Expansion Joints are provided on the shell side of heat exchanger. It allows the free expansion of shell relieving tube sheet & tube to tube sheet weld junction. Thus, preventing its failure.
Process equipment manufacturer from India & Abroad approached ANALYZER to seek assistance in evaluating the design of their newly developed heat exchangers for their expansion joint & provide the solution in case of any observed failure.

Workflow

•Design parameters & material properties extraction for Expansion Joint of the heat exchanger
•Preparing FEA Models for 4 different conditions of expansion joint i. e. Nominal Thickness including/excluding corrosion allowance & minimum thickness including/excluding corrosion allowance.
•Solving all four FEA Models for stiffness calculations
•Providing the expansion joint stiffness to client to get the shell axial membrane stress summary for two different thicknesses of expansion joint (Nominal & Minimum).
•Solving two extreme geometrical conditions of expansion joint (Nominal excluding corrosion allowance & minimum including corrosion allowance) for different loading conditions
•Preparing an easy-to-understand report for the performed FEA.

Challenges

•Studying the stiffness calculations by different methods (FEA & Design Software) & using the most appropriate method capturing the actual behaviour of the structure I.e., FEA method of stiffness calculation

SOLUTION

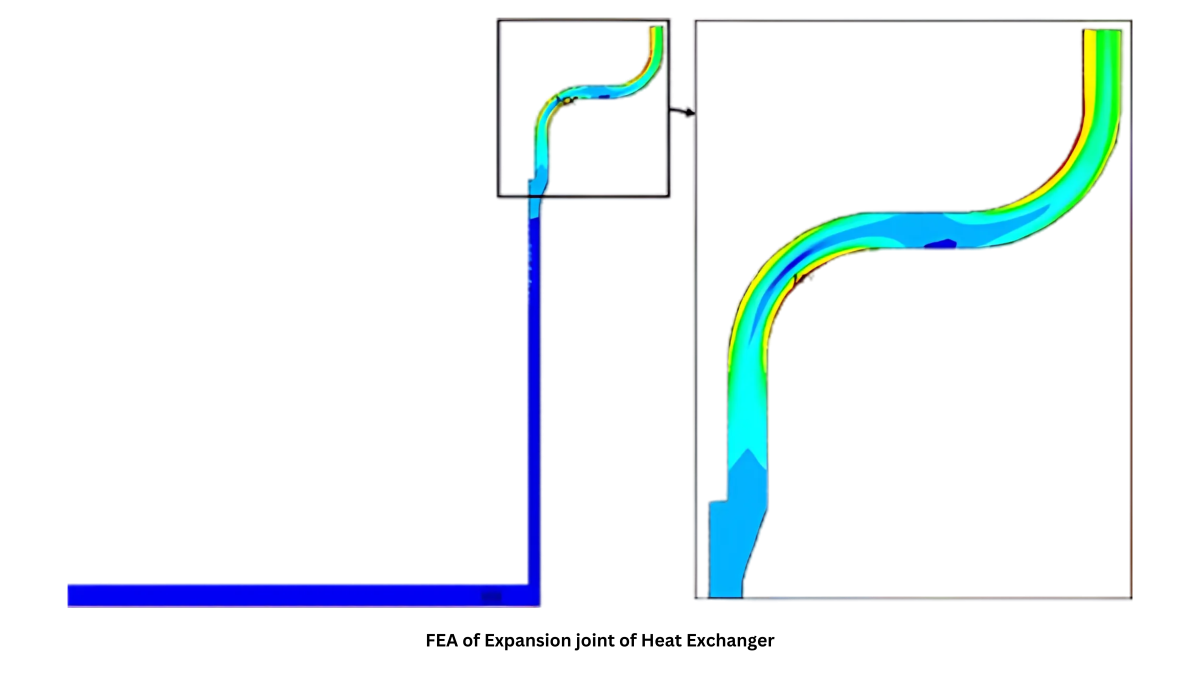

The expansion joint was analysed for different loading conditions as per TEMA standards using Finite Element Analysis in ANSYS APDL Solver. Stress Linearization has been carried out at various locations as per the guidelines. The results showed that the induced stresses were well within the acceptable limits. Hence, the structure’s design was predicted to behave safe during operation without premature failure.

BENEFITS

•Actual behaviour of expansion joint of a heat exchanger is studied.
•Reduced manufacturing time
•Application of an expansion joint for multiple
